GYXTA33钢丝铠装光缆，24芯钢丝铠装防鼠咬光缆

发布日期：2021-02-05 14:01:41 发布人： 中泰海华 浏览次数：140
GYXTA33钢丝铠装光缆，24芯钢丝铠装防鼠咬光缆 GYXTA33钢丝铠装光缆，24芯钢丝铠装防鼠咬光缆 GYXTA33钢丝铠装光缆，24芯钢丝铠装防鼠咬光缆

GYXTA33钢丝铠装光缆，24芯钢丝铠装防鼠咬光缆

型号：GYXTA33

芯数：2-24

包装：木轴

运输：物流快运

交期：7天


立即询价
厂家报价： 188-6144-7119

GYXTA33钢丝铠装光缆，24芯钢丝铠装光缆

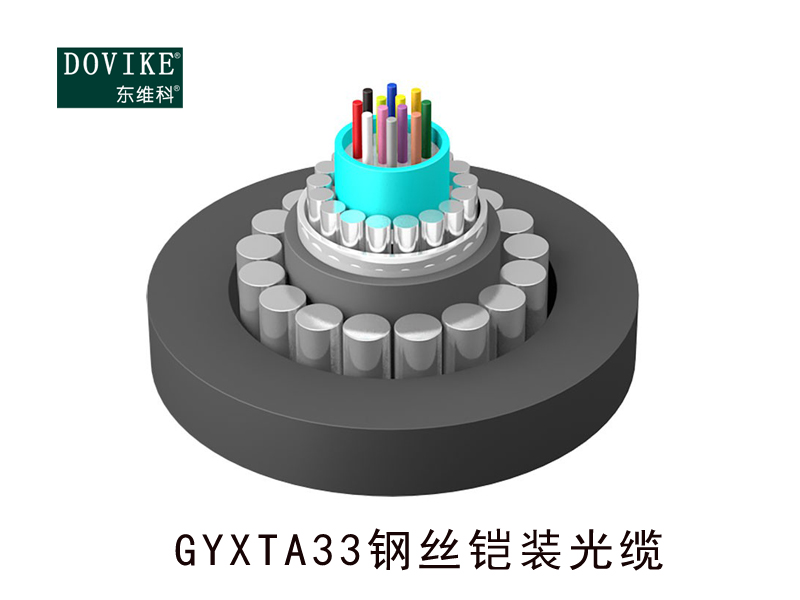

GYXTA33钢丝铠装光缆的结构是将 250µm 光纤套入高模量材料制成的松套管中，松套管内填充防水化合物。松套管外绞合一层单细圆钢丝形成紧凑和圆形的缆芯，缆芯内的缝隙充以阻水填充物。涂塑铝带（APL）纵包后挤一层聚乙烯内护套，再经单细圆钢丝铠装后，最终挤制聚乙烯外护层成缆。

产品标准

GYXTA33 光缆符合 YD/T 769-2010 和 IEC 60794-1 标准。

产品特点

•  具有很好的机械性能和温度特性

•  双层单细圆钢丝铠装使光缆具有更强的抗拉性能

•  松套管材料本身具有良好的耐水解性能和较高的强度

•  管内充以特种油膏，对光纤进行了关键性保护

•  良好的抗压性和柔软性

•  体积小，重量轻，易于敷设

•  采用下列措施来确保光缆的防水性能：

- 松套管内填充特种防水化合物

- 完全缆芯填充

- 涂塑铝带（APL）防潮层

- 良好的阻水材料防止光缆纵向渗水

结构参数

光缆型号

（以2纤递增）

光纤数

参考光缆重量

（kg/km）

允许拉伸力

长期/短期
(N)

允许压扁力

长期/短期
(N/100mm)

弯曲半径

静态/动态
(mm)

GYXTA33-2~12Xn

2~12

448

4000/10000

3000/5000

12.5D/25D

GYXTA33-14~24Xn

14~24

478

储存、使用温度：-40℃至+70℃。

光学特性

光纤类型

衰减

（+20℃）

带宽

数值孔径

光缆截止波长

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm

G.652

---

---

≤0.36dB/km

≤0.22dB/km

---

---

---

≤1260nm

G.655

---

---

≤0.40dB/km

≤0.23dB/km

---

---

---

≤1450nm

50/125µm

≤3.0dB/km

≤1.0dB/km

---

---

≥500MHz·km

≥500MHz·km

0.200±0.015 NA

---

62.5/125µm

≤3.3dB/km

≤1.0dB/km

---

---

≥200MHz·km

≥500MHz·km

0.275±0.015 NA

---

适用：直埋、爬坡、水下

防鼠咬光缆是常规定制产品，如果您在网站上没找到需要的防鼠咬光缆型号，我们可以根据您的具体需求报价并生产，另可提供相关的设计参数和配套产品，询价采购欢迎跟我们联系！

销售部负责人：18861447119郑经理 （微信同号）
